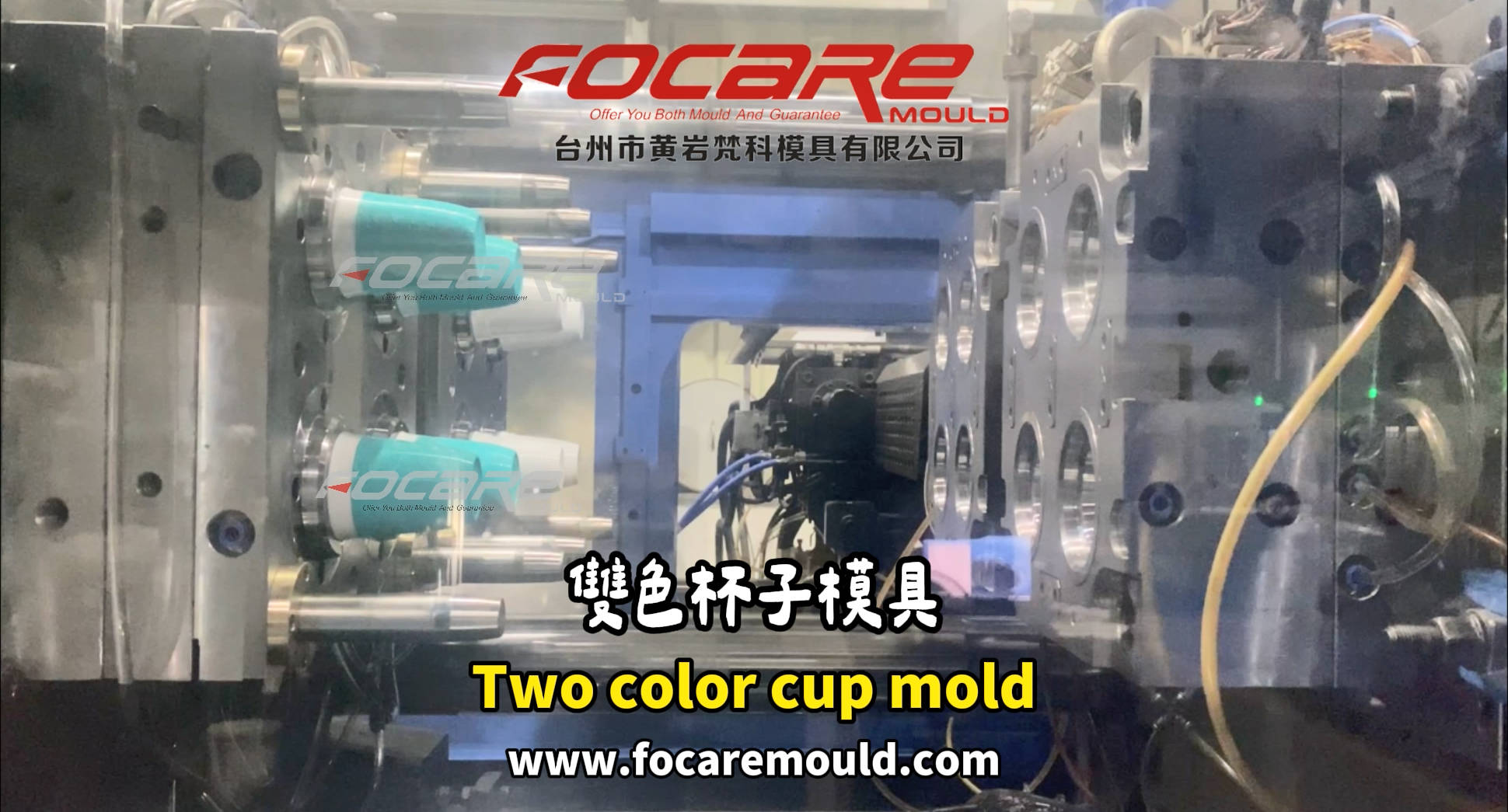

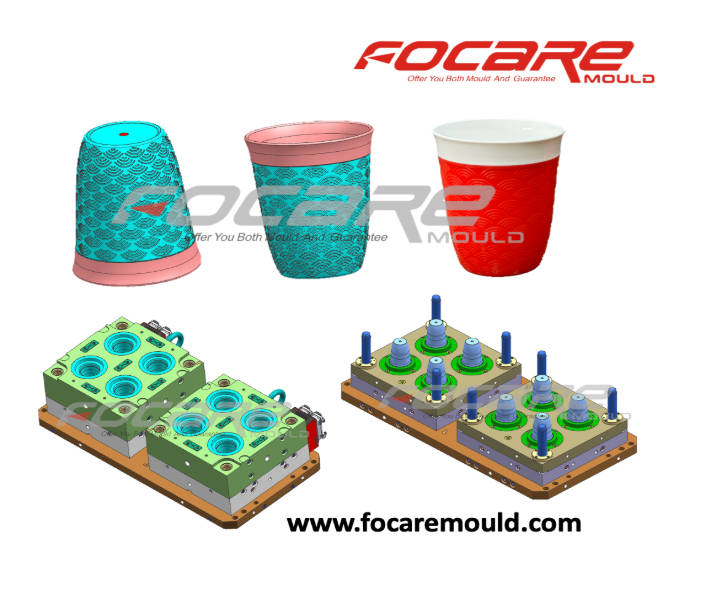

Detail information of Two color Plastic Cup Mold

Product Dimension: ø86 X 104mm

Product Weight: 27.3+20.2g

Mold Cavity：4+4

Mold Steel：718H with 30-33 HRC

Mold Injection System：4 tips YUDO HR

Mold Dimension: 1090 X 550 X 526 mm

Mold Weight: 1688 kgs

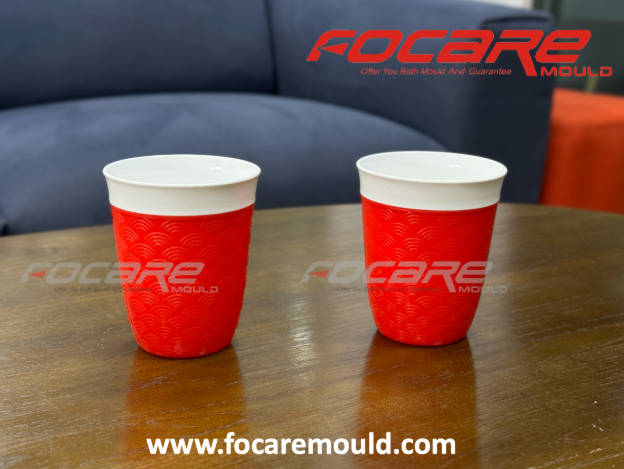

A two color plastic cup mold is a specialized injection mold used to produce cups that combine two different plastic materials or colors in one seamless product. The two materials are injected into the mold either simultaneously or in sequence using either rotary or core-back mold mechanisms.

This technology not only enhances the visual impact of the final product but also allows for functional advantages — such as better grip (through soft-touch surfaces), increased durability, and reduced post-processing steps.

Why Choose a Two Color Mold Maker?

Choosing an experienced two color mold maker is crucial because multi-color molding involves complex tooling design, precise alignment, and meticulous craftsmanship. Unlike conventional single-color molds, two-color molds must ensure perfect parting line matching, material compatibility, and injection timing synchronization. Poor design or manufacturing can lead to flashing, leakage, or improper bonding between materials.

That’s where Focare Mould, a leading China mold making factory, comes in.

Focare Mould: Your Trusted Partner in China

Located in Huangyan, Taizhou — the heart of China’s mold-making industry — Focare Mould has built a strong reputation as a professional China mold maker with a particular focus on two color molds. The company offers:

Expertise in multi-color and multi-material molds

From two-color toothbrush handles to household containers and two color plastic cups, Focare Mould has deep technical know-how and a proven portfolio.

In-house mold design & simulation

With advanced CAD/CAM software and mold flow analysis, they ensure each mold is optimized for performance and durability.

High-speed precision CNC machining

To meet tight tolerances required for two-color molds, their workshop is equipped with high-speed CNC, EDM, and double-head wire-cutting machines.

Excellent customer service & global export

Focare Mould exports its molds to over 30 countries, providing after-sales support and timely project updates to clients worldwide.

Why choosing Focare Mould as your work partner?

Brand Strength
