Detail information of Two-Color Cutlery Tray Mold

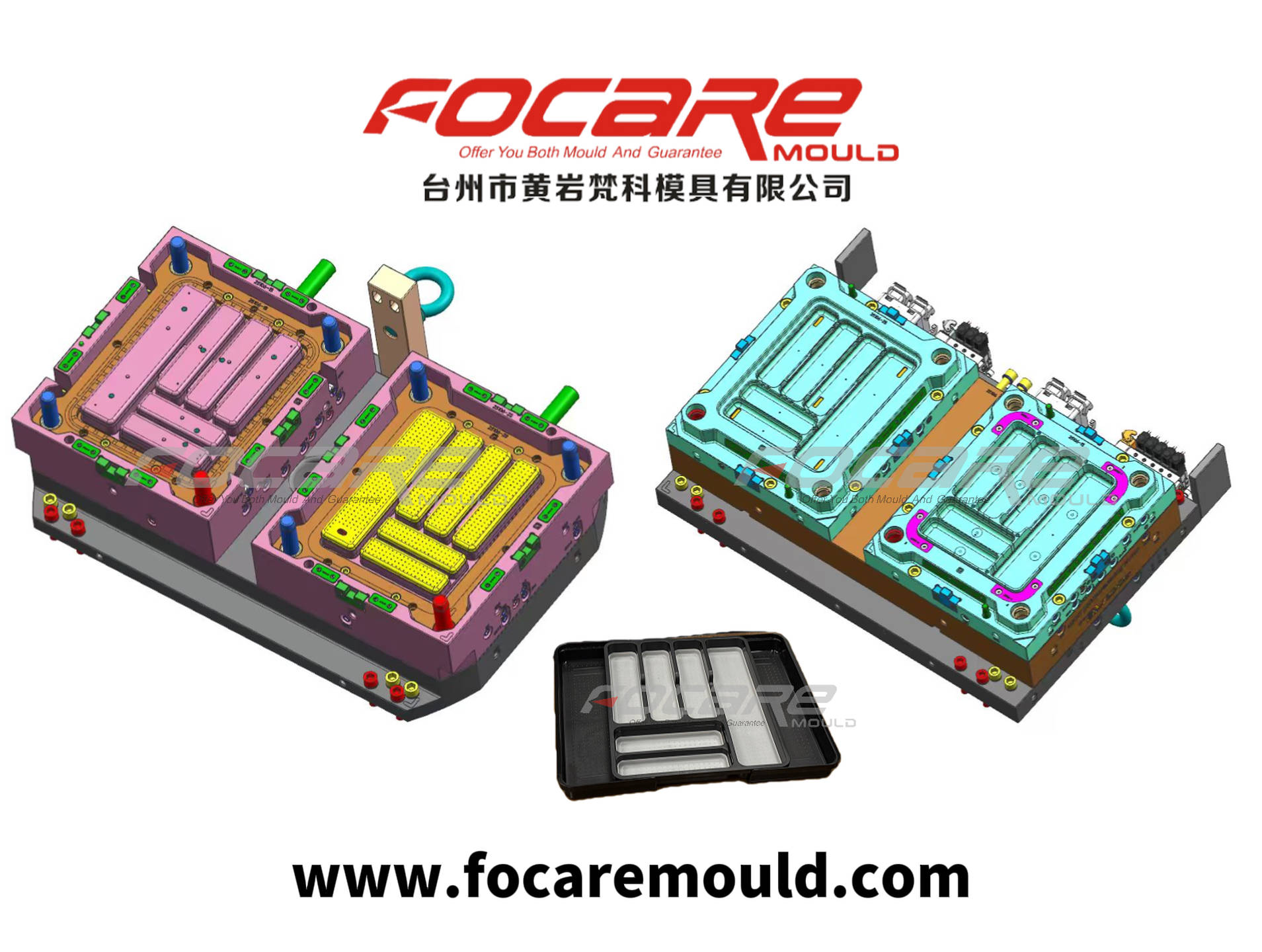

Two Color Cutlery Tray Mold

Mold Cavity: 1+1

Mold steel : P20H

Runner system:  PP part 2 tips valve gates , Tpe part 7 tips valve gates

Suggest machine : Haitian MA 5300

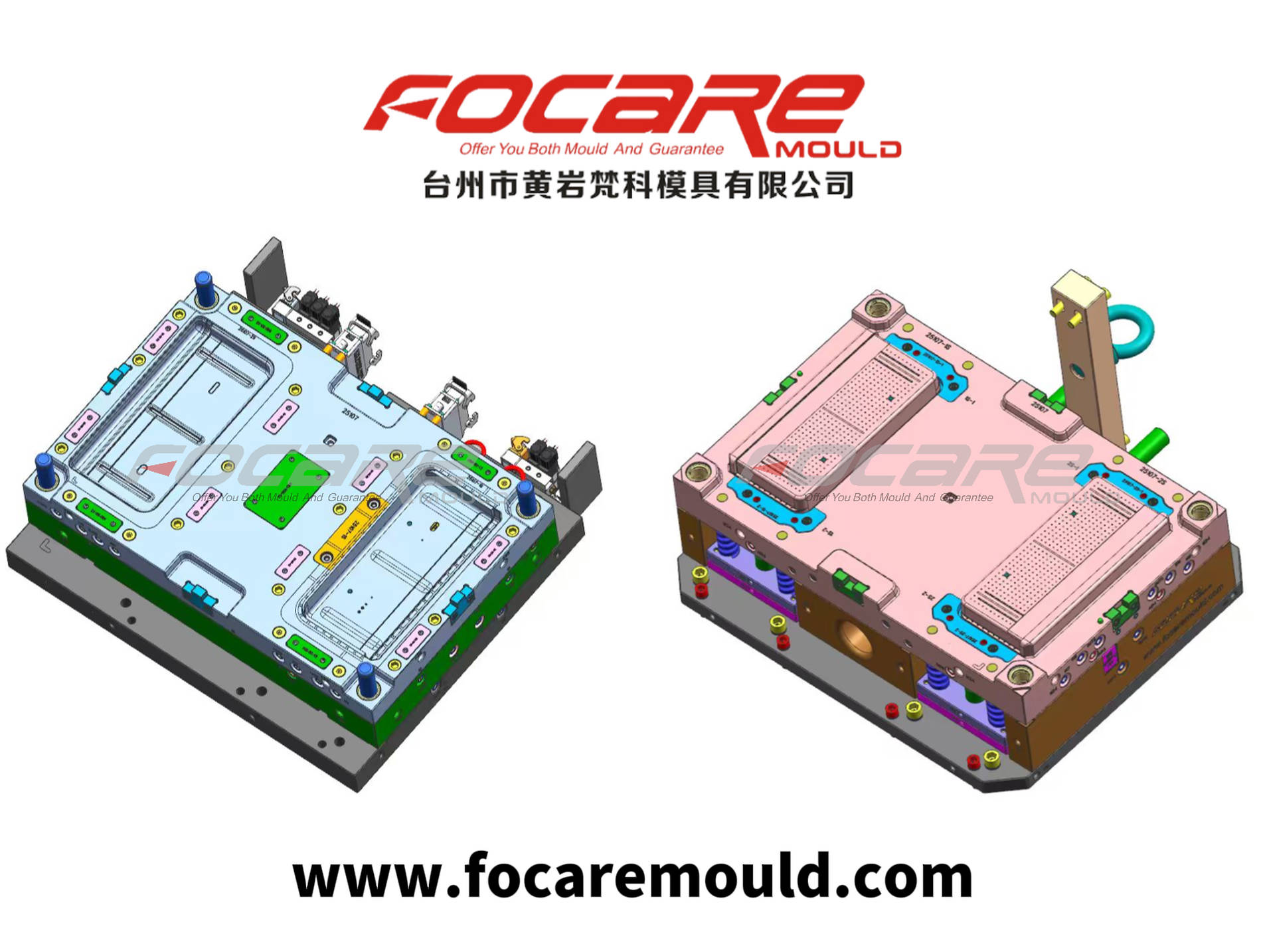

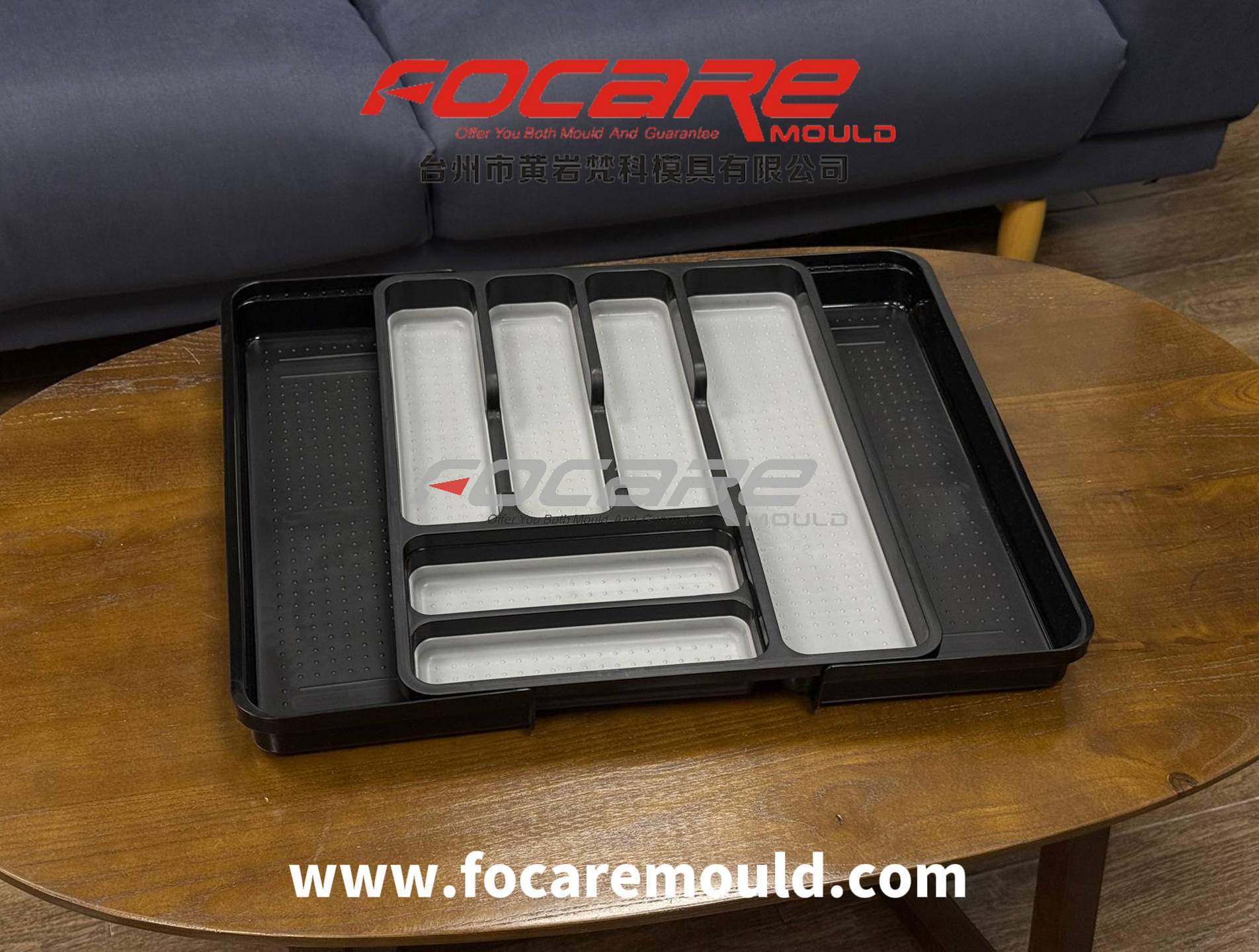

Two Color Cutlery Tray  Sliding BaseMold

Mold Cavity: 1+1

Mold steel : P20H

Runner system:  PP part 2 tips valve gates , Tpe part 3 tips valve gates

Suggest machine : Haitian 360/530

Two Color Cutlery Tray Mold Manufacturer in China

A two color cutlery tray mold is a specialized injection mold designed to combine two different colors or materials into a single kitchen organization product. Compared with conventional single-color injection molding, a two-color mold requires more precise mold design, material coordination, hot runner control, and injection molding technology.

For this project, Focare Mould developed a PP + TPE two-color cutlery tray mold for high-volume production. The mold is designed around a Haitian MA5300 injection molding machine and uses separate needle valve hot runner systems for the PP and TPE components.

The PP side uses a 5-point needle valve system, while the TPE side uses a 7-point needle valve system. The mold is manufactured using P20H mold steel with a hardness of approximately 28–30 HRC, providing a practical balance between machining performance, mold durability, and production requirements.

This project demonstrates Focare Mould's capabilities as a professional two color mold maker, China mold maker, and China mold making factory for complex 2K injection molding applications.

PP + TPE Two Color Injection Molding

The key feature of this project is the combination of PP and TPE in a two-color injection molding process.

PP provides the structural foundation of the cutlery tray, while TPE can be used for areas where softness, flexibility, cushioning, or anti-slip performance is required.

Instead of manufacturing the two components separately and assembling them afterward, a 2K injection molding process allows the two materials to be integrated into one finished product.

This can potentially reduce secondary assembly operations and create a cleaner, more integrated product appearance.

However, PP and TPE require careful consideration during mold design because their processing characteristics are different.

The mold maker needs to consider:

Material compatibility

Filling balance

Gate location

Injection pressure

Mold temperature

Cooling efficiency

Product deformation

Two-color positioning

Sealing between mold components

Ejection system

Hot runner control

These factors are especially important when the product has a relatively large surface area, multiple compartments, and complex geometry like a kitchen cutlery tray.

5-Point Needle Valve System for PP

The five needle valve gates are therefore an important part of the overall mold design.

Needle valve technology also allows more precise control of gate opening and closing compared with conventional open-gate systems.

This is particularly useful when the appearance of the finished kitchen product is important.

7-Point Needle Valve System for TPE

The TPE component uses a 7-point needle valve hot runner system.

Because TPE has different flow characteristics from PP, the runner and gate system must be designed specifically for the material.

The seven injection points help distribute TPE across the required product areas and provide greater control over the filling process.

For a two-material product, the TPE injection system must also work together with the PP component and the overall mold structure.

The engineering team needs to consider the relationship between:

PP filling → mold positioning → TPE filling → bonding/contact area → final product dimensions

This is one reason why selecting an experienced two color mold maker is important for PP + TPE 2K injection molding projects.

Two Color Cutlery Tray Mold Manufacturer in China

For companies searching for a reliable two color mold maker in China, the most important factor is not simply the mold price.

The manufacturer should understand the relationship between:

Product Design + Plastic Material + Hot Runner + Mold Structure + Injection Machine + Production Requirements

This is particularly important for 2K products using different materials such as PP and TPE.

With experience in two-color injection molds and complex plastic products, Focare Mould provides custom mold manufacturing solutions for international customers.

Our goal is to build molds that are designed not only for sampling, but for stable and efficient mass production.
