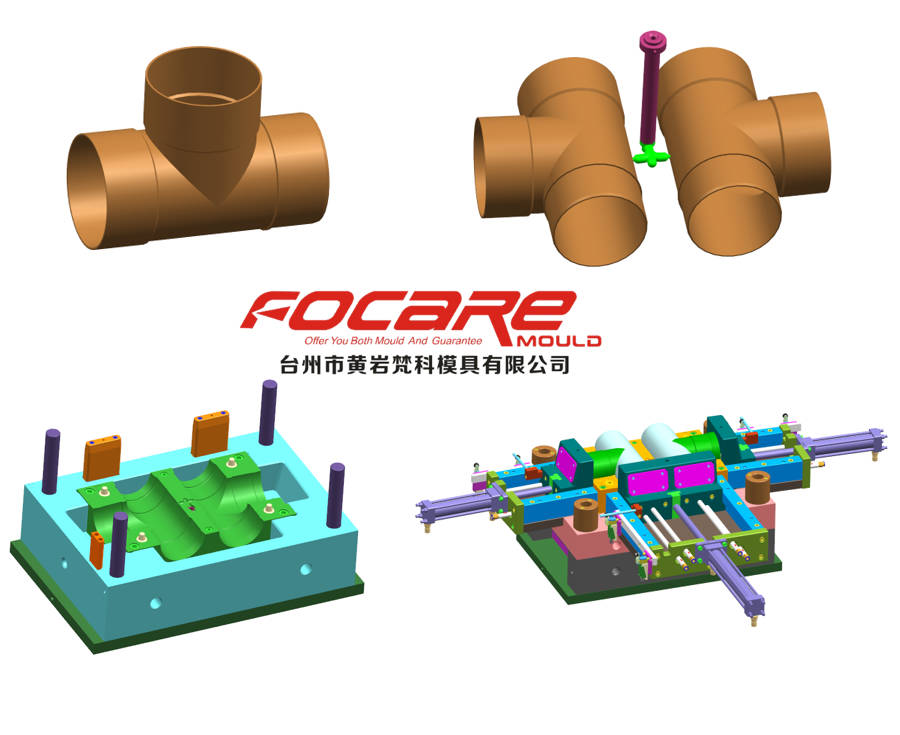

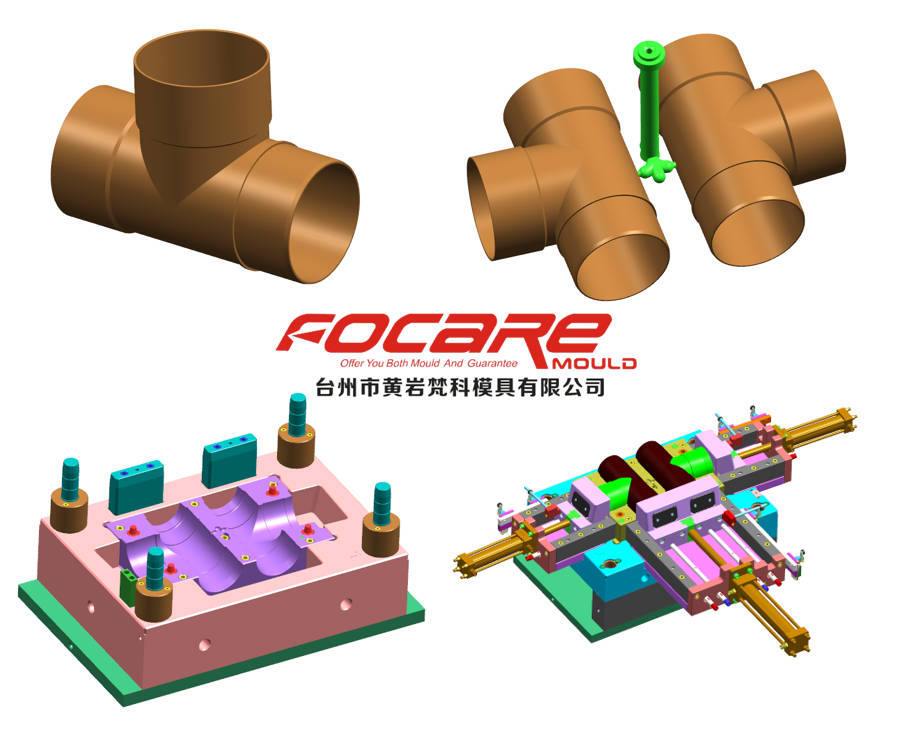

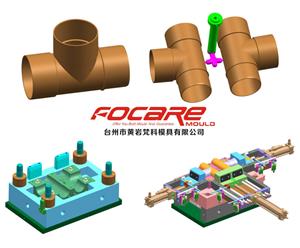

Detail information of PVC Tee Pipe  Mold

A PVC Tee Pipe mold is a specialized injection mold designed to produce PVC tee fittings used in plumbing, irrigation, drainage, and industrial piping systems. The tee fitting allows a pipeline to branch into two directions, making it one of the most essential components in any piping network.

Behind every high-quality PVC tee fitting is a precisely engineered mold. The mold determines the fitting’s wall thickness, dimensional accuracy, sealing performance, and overall durability. For pipe systems that must withstand pressure and temperature variation, mold precision is not optional — it is critical.

Why Mold Design Matters in PVC Tee Production

PVC material has unique processing characteristics. It is temperature-sensitive and requires careful control of:

1.Injection pressure

2.Cooling system design

3.Gate location

4.Venting structure

5.Ejection balance

A well-engineered PVC Tee Pipe mold ensures:

1.Smooth inner flow channels

2.No burn marks or degradation

3.Consistent wall thickness

4.Strong joint strength

5.High production efficiency

This is why selecting an experienced China mold maker is essential for long-term product stability.

Key Technical Features of a High-Quality PVC Tee Pipe Mold

A professional China mold making factory typically incorporates the following features:

1.Optimized Runner System
Designed to reduce material waste and maintain balanced filling.

2.Hardened Core & Cavity Steel
High-quality steel improves mold lifespan and surface finish.

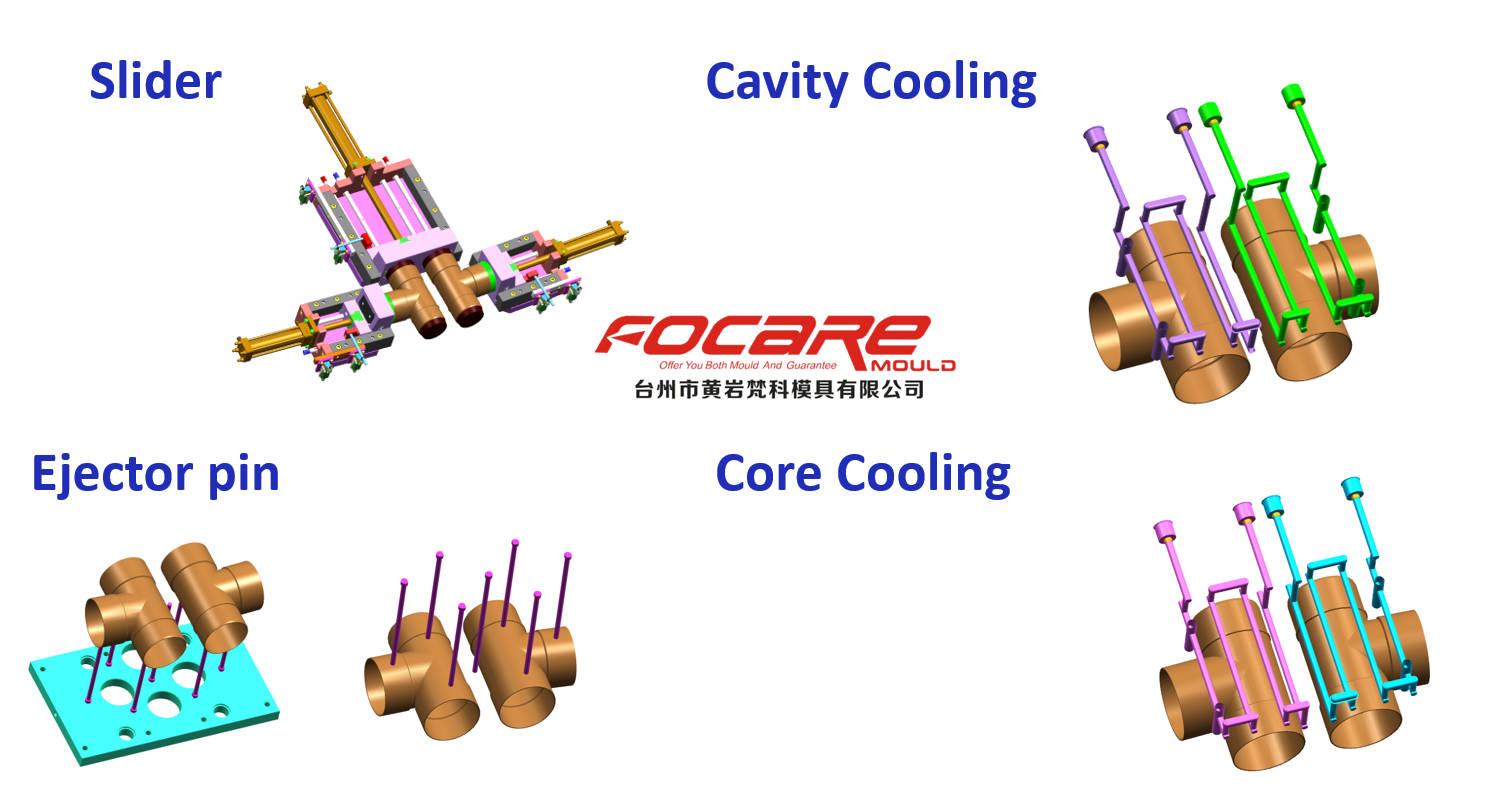

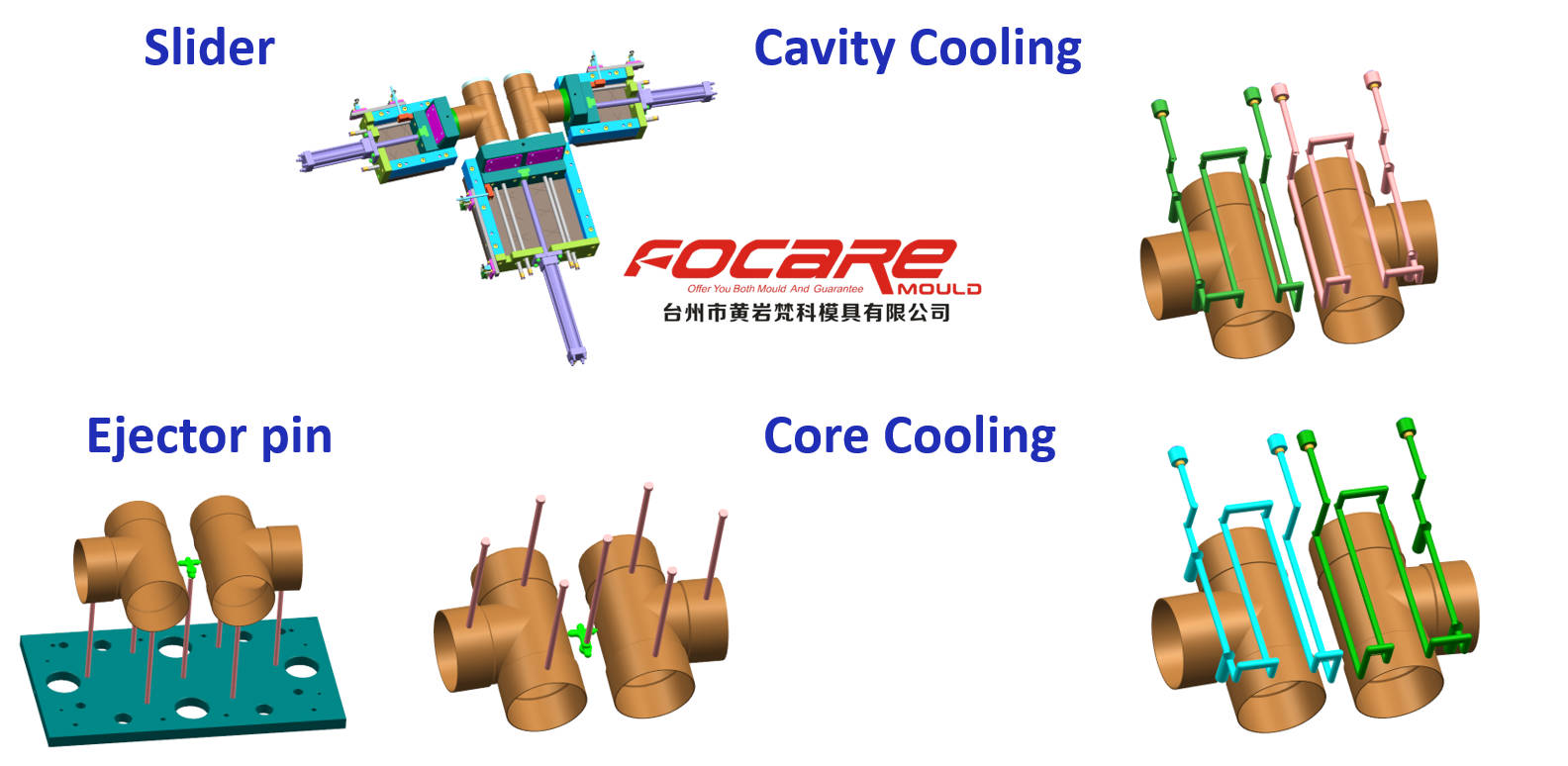

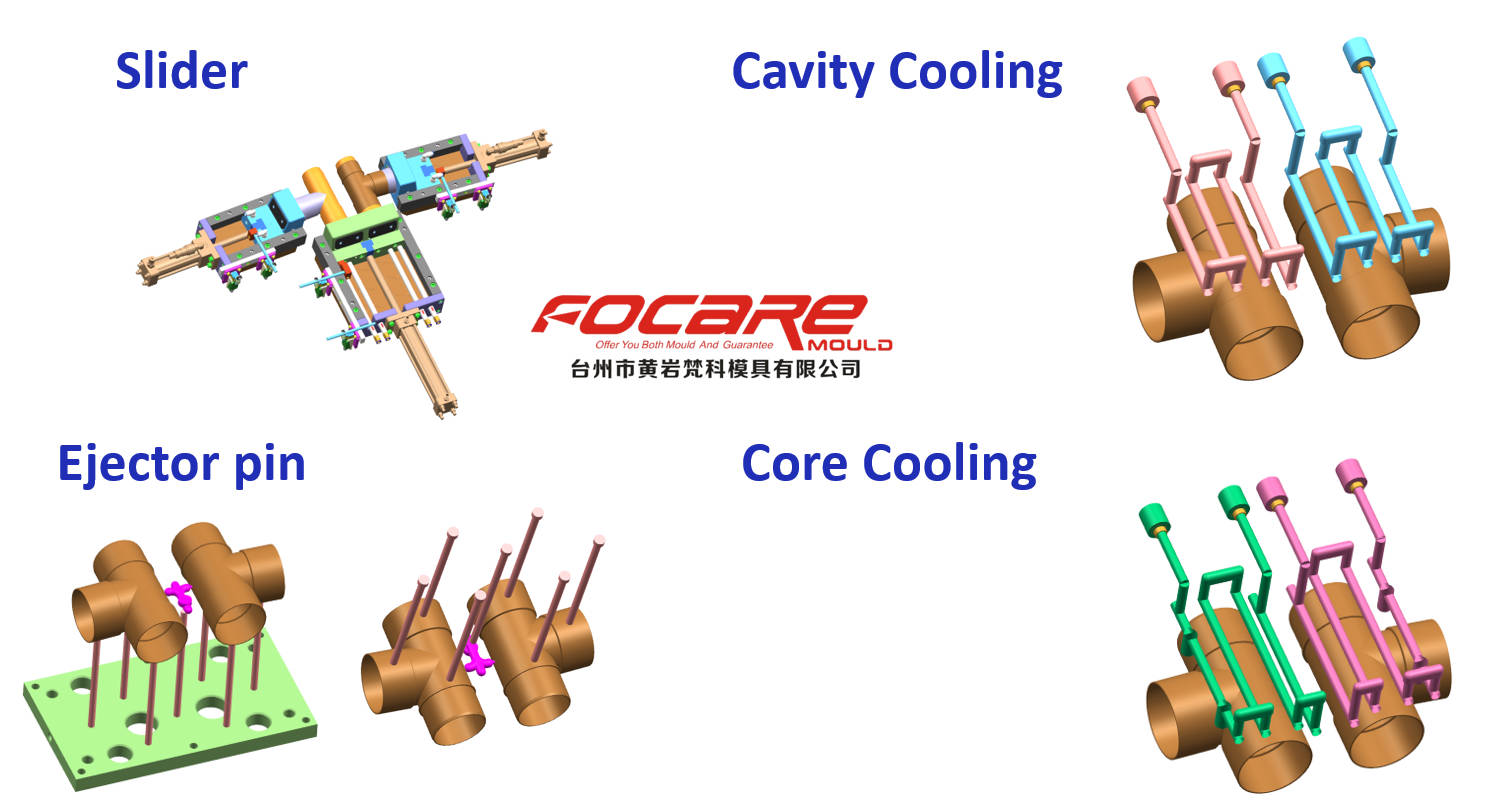

3.Efficient Cooling Layout
Uniform cooling prevents deformation and reduces cycle time.

4.Precision Machining
CNC machining and EDM ensure tight tolerances and accurate pipe socket dimensions.

5.Easy Maintenance Structure
Replaceable wear parts allow longer mold life and lower downtime.

Why Work with a Reliable China Mold Maker?

China has become a global hub for precision mold manufacturing due to:

1.Advanced CNC equipment

2.Skilled engineering teams

3.Competitive production cost

4.Mature supply chain support

However, not all suppliers offer the same technical depth. Choosing a structured China mold making factory with strong DFM capability ensures that the mold is optimized before steel cutting begins.

Focare Mould: Engineering with Precision

Focare mould specializes in precision injection molds for pipe fittings and household plastic products. With experienced engineers and a systematic design approach, Focare mould focuses on:

1.Detailed DFM analysis

2.Stable mold structure design

3.Long mold life solutions

4.International quality standards

5.Efficient after-sales technical support

From standard PVC tee fittings to customized pipe components, Focare mould delivers tooling solutions that balance durability, accuracy, and production efficiency.

Final Thoughts

A PVC Tee Pipe mold is more than just a tooling product — it is the foundation of a reliable piping system. The right mold partner ensures stable production, consistent quality, and long-term profitability.

Whether you are developing standard PVC fittings or exploring advanced two-color solutions, partnering with a professional China mold maker and experienced two color mold maker like Focare mould can give your project the technical advantage it needs.
