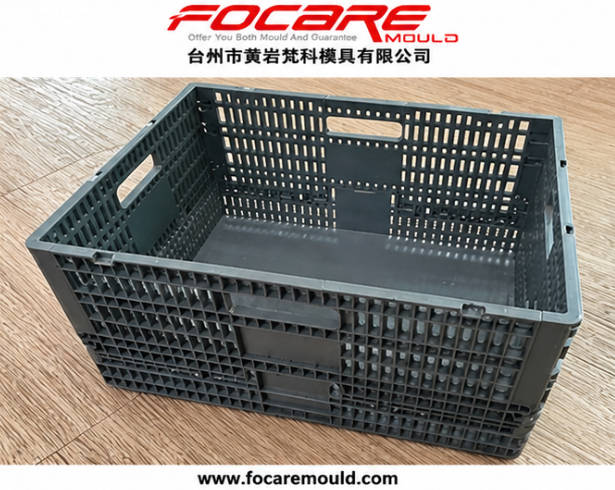

Plastic Banana Crate Injection Mould

Plastic banana crates are widely used for the transportation, handling and storage of bananas and other fresh produce. Compared with conventional solid containers, ventilated plastic crates provide good air circulation while maintaining sufficient structural strength for stacking and transportation.

Focare Mould developed this plastic banana crate injection mould project as a complete mould set consisting of the crate bottom, long-side panels and short-side panels.

The product is manufactured from PP material and is designed for reliable mass production of durable fruit transportation crates.

Banana Crate Mould Set

This banana crate project consists of three injection moulds:

All three components are designed for PP injection moulding, with a material shrinkage rate of approximately 1.6%.

By producing the bottom and side panels separately, the crate can be designed with the required structure while maintaining efficient moulding and assembly.

Hot Runner System

The banana crate moulds use hot runner injection systems to support efficient production of these relatively large plastic components.

A properly designed hot runner and gating system helps achieve balanced filling across the product while reducing runner waste.

For large plastic crate components with many ribs, ventilation openings and structural features, filling balance is particularly important to prevent short shots and inconsistent product quality.

Efficient Cooling System

Cooling performance is one of the key factors affecting the production cycle of a plastic crate mould.

Focare Mould optimizes the cooling channel layout according to the product geometry and mould structure to achieve more uniform temperature control.

1.Efficient cooling helps:

2.Reduce injection moulding cycle time

3.Improve dimensional stability

4.Reduce product deformation

5.Support consistent mass production

For large crate components, proper cooling is particularly important because uneven temperature distribution may result in warpage or dimensional variation.

Mould Steel & Durability

Plastic crate moulds are normally designed for continuous production and therefore require reliable mould materials and wear-resistant components.

For this banana crate project, 2311 mould steel is specified for the main moulding components.

Appropriate steel selection, machining accuracy and heat treatment of critical components help improve mould durability and maintain stable performance during long-term production.

Mould Design for Recycled Materials

Depending on the customer's production requirements and plastic material, a filtration system can also be considered for crate mould applications using recycled material.

This helps reduce the possibility of contaminants entering critical runner or gate areas and supports more stable injection moulding.

The actual filtration, runner and gating solution should be selected according to the resin quality and production conditions.

High-Precision Crate Mould Manufacturing

Although plastic crates are relatively large products, dimensional accuracy remains important because the bottom and side components must fit and assemble correctly.

Focare Mould uses precision CNC machining and quality-control procedures throughout mould manufacturing.

For this type of multi-component crate project, particular attention is given to:

mould dimensions, component matching, filling balance, cooling efficiency, ejection reliability and final product assembly.

Customized Plastic Crate Mould Manufacturer

Focare Mould provides customized plastic crate injection moulds for a wide range of logistics, agricultural and household applications, including:

Fruit crate moulds

Vegetable crate moulds

Banana crate moulds

Foldable crate moulds

Beer crate moulds

Bottle crate moulds

Milk crate moulds

Agricultural crate moulds

From product analysis and DFM to mould design, machining, assembly and mould trials, our engineering team can develop the mould structure according to the customer's product design, material, injection moulding machine and production requirements.

If you are developing a new plastic fruit crate, banana crate or foldable transportation crate, Focare Mould can provide a customized injection mould solution for your project.
