29.5x20x7mm Thin-Wall Container Mould

29.5×20×7mm Thin-Wall Container Mould

Thin-wall plastic containers are widely used for food packaging, household storage and other lightweight packaging applications. Compared with conventional plastic containers, thin-wall products require higher mould precision, efficient cooling and balanced filling to achieve stable production with short cycle times.

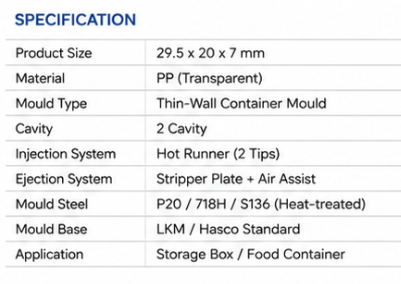

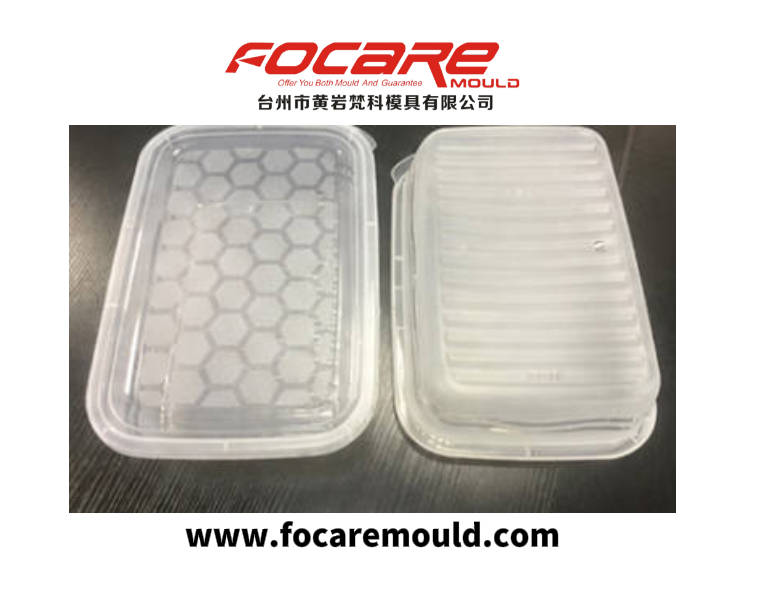

For this thin-wall container mould, the product is manufactured from transparent PP material. The mould is designed as a 2-cavity structure for efficient mass production.

Thin-Wall Container Mould Design

Because of the thin wall thickness, balanced and fast cavity filling is especially important. The mould adopts a hot runner injection system with two hot nozzle tips, helping the molten plastic fill the cavities efficiently while reducing runner waste.

The hot runner system also supports automated production and improves material utilization, which is particularly important for high-volume thin-wall packaging applications.

Stripper Plate & Air-Assisted Ejection

A stripper plate ejection system is used for product demoulding. Air-assisted ejection is incorporated to help release the thin-wall container smoothly and reduce the possibility of deformation or damage during ejection.

This combination provides more uniform ejection force and improves production stability for lightweight PP containers.

Efficient Cooling System

Cooling efficiency has a direct influence on the cycle time and dimensional stability of thin-wall products.

For this mould, the cooling channels are arranged to provide uniform cooling around the cavity and core areas. An optimized cooling layout helps reduce temperature differences, control product deformation and support shorter production cycles.

Mould Steel & Durability

Thin-wall injection moulds operate under demanding production conditions and therefore require suitable mould materials and reliable component design.

The cavity and core components can be manufactured from high-quality mould steel with appropriate heat treatment according to the customer's production requirements.

Wear-resistant steel is also used for critical moving components to improve durability and extend the mould's service life during continuous mass production.

Customized Thin-Wall Mould Manufacturing

Focare Mould provides customized thin-wall container mould design and manufacturing for food packaging, household containers and other thin-wall plastic products.

Our engineering team can support customers from product analysis and DFM to mould design, manufacturing, assembly and mould trials, with particular attention to filling balance, cooling efficiency, ejection reliability and production cycle time.

If you are developing a new thin-wall food container, packaging container or storage box, Focare Mould can provide a customized injection mould solution according to your product design, injection machine and production requirements.
