Plastic Storage Box Injection Mold Case Study

Plastic storage boxes may look simple, but their large surfaces, deep cavity and structural ribs can make mold design challenging. Poor cooling or unbalanced ejection can easily lead to deformation, long cycle times or unstable production.

In this project, Focare developed a plastic storage box injection mold with particular attention to mold structure, product release and cooling efficiency.

The goal was straightforward: create a mold capable of producing the storage box consistently and reliably in mass production.

Product Analysis

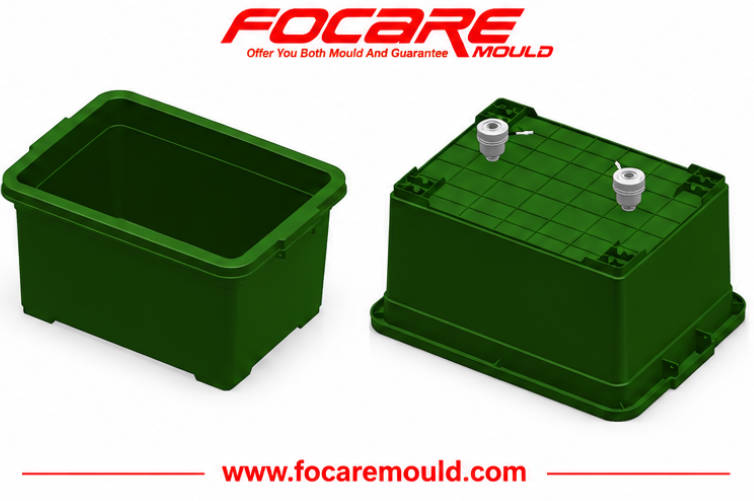

The product is a large rectangular plastic storage box with a deep cavity, reinforced upper rim and structural features around the bottom and side walls.

Before starting the mold design, our engineering team evaluated several key areas:

>Product draft and demolding direction

>Wall thickness and potential deformation

>Parting line position

>Gate location

>Ejection requirements

>Cooling arrangement

>Mold size and machine compatibility

The relatively deep box structure means that both shrinkage and the holding force on the core must be considered carefully during mold development.

1. Insert Design for Easier Maintenance

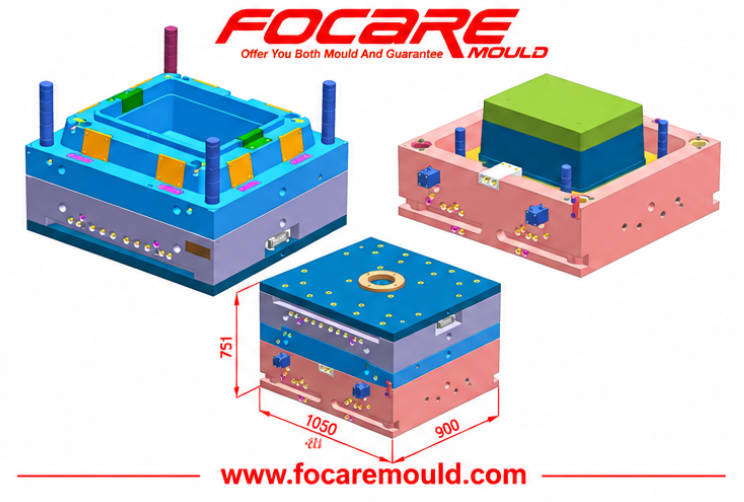

Instead of machining all detailed structures directly into the main cavity, selected areas of the mold were designed with separate inserts.

This provides several advantages.

Complex areas can be machined more accurately, and damaged or worn sections can be maintained or replaced without rebuilding the complete cavity.

For molds intended for long-term production, this can significantly simplify future maintenance.

2. Balanced Ejection System

A storage box has a relatively large surface area. If the ejection force is concentrated in only a few positions, the product can deform during demolding.

For this project, the ejection system was designed to distribute the force more evenly.

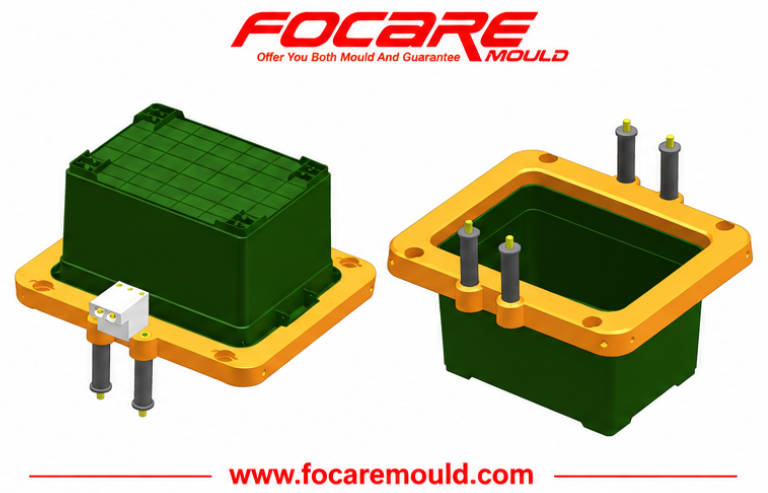

A stripper plate structure helps provide balanced ejection around the product and allows the storage box to release from the mold more consistently.

The objective is simple:

stable ejection without damaging or deforming the molded part.

3. Venting Around Ribs and Corners

Storage boxes contain many ribs and enclosed areas where trapped air can affect filling.

Poor venting may result in burn marks, short shots or unstable molding conditions.

For this reason, venting locations were considered around critical ribs, corners and insert areas.

Proper venting helps molten plastic fill the cavity more consistently and improves production stability.

4. Cooling Design for Cycle Time and Stability

Cooling is one of the most important considerations in a plastic storage box mold.

Uneven mold temperature can cause deformation and increase the molding cycle.

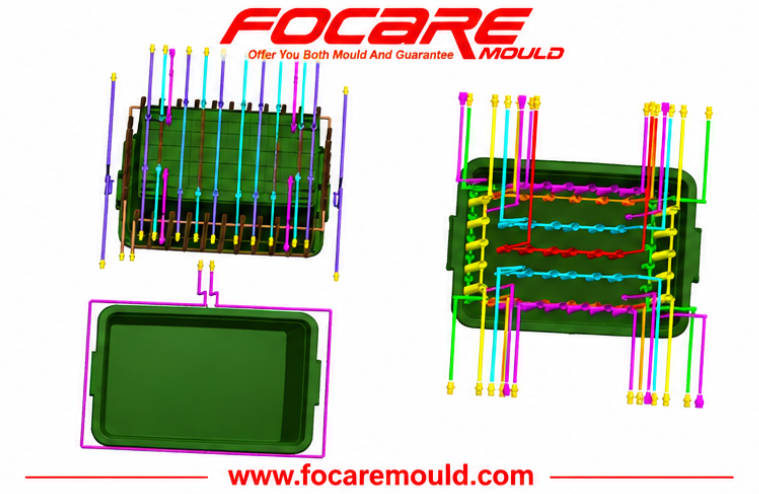

The cooling channels were therefore arranged according to the product geometry and mold structure to provide more uniform temperature control around the cavity and core.

An efficient cooling layout helps:

1.Reduce unnecessary cooling time

2.Improve dimensional stability

3.Control product deformation

4.Maintain consistent production

The final cooling design can also be adjusted according to the customer's plastic material and injection molding machine.

5. Precision Machining and Mold Assembly

Good mold design alone is not enough.

The cavity, core, inserts and parting surfaces must also be machined and assembled accurately.

Precision CNC machining is used for critical mold components, followed by mold fitting and inspection during assembly.

This helps control dimensional accuracy and reduces the possibility of excessive flash during production.

PP or HDPE?

Both PP and HDPE can be used for plastic storage products.

PP is commonly selected for storage boxes requiring good stiffness, relatively low weight and general-purpose use.

HDPE can be considered when higher impact resistance and durability are required.

The material should be confirmed before final mold design because shrinkage, product structure, gate design and molding parameters can differ.

Focare can evaluate the mold solution according to the customer's selected material and application.

Custom Plastic Storage Box Mold Manufacturer

Focare Mould manufactures custom injection molds for plastic storage boxes, industrial parts bins, toolboxes, household organizers, crates and other plastic storage products.

Our team supports the complete process from product and DFM evaluation through mold design, manufacturing, T1 trial and sample approval.

If you are developing a new plastic storage product, send us your 2D/3D drawing, plastic material and injection machine information.

We can evaluate the mold structure and provide a suitable mold solution for your project.
